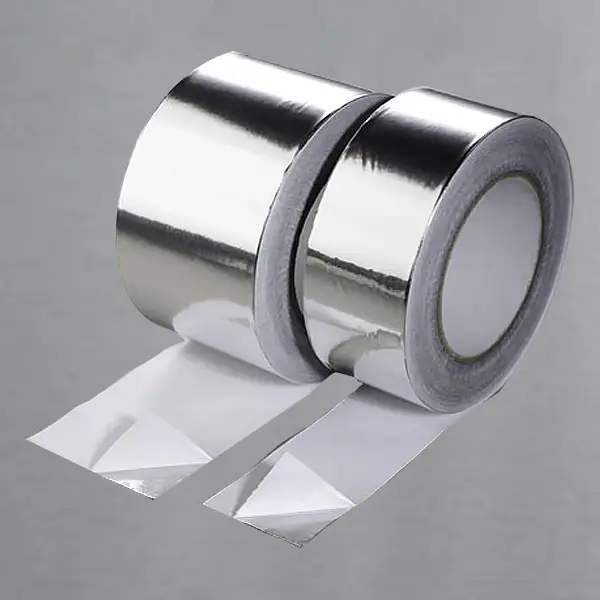

Heat Speed Aluminum Foil Self Adhesive Tape
What are the features of our Aluminium Foil Adhesive tape?
• Aluminum backing provides excellent reflection of both heat and light.
• High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in HVAC ductwork application.
• Good aging resistance both indoors and outdoors.
• Low moisture vapor transmission rate offers excellent sealing and patching performance.
What are the Specifications of our Aluminium Foil Adhesive tape?
PROPERTIES | METRIC | ENGLISH | TEST METHOD |
Backing Thickness | 22 Micron | 0.88 Mil | PSTC-133 / ASTM D 3652 |
Total Thickness | 55 Micron | 2.20 Mil | PSTC-133 / ASTM D 3652 |
Adhesion to Steel | 18 N/25mm | 65 Oz./In. | PSTC-101 / ASTM D 3330 |
Tensile Strength | 40 N/25mm | 9.1 Lb/In | PSTC-131 / ASTM D 3759 |
Elongation | 3.0 % | 3.0 % | PSTC-131 / ASTM D 3759 |
Service Temperature | -20 ~ +80 °C | -4 ~ +176 °F | ------------ |
Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Five types of aluminum tape :
A. Aluminum tape with synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
B. Aluminum tape with solvent acrylic adhesive, protected by an easy-release silicone release paper.
C. Aluminum tape with cold weather acrylic adhesive, protected by an easy-release silicone release paper.
D. Aluminum tape with clod weather solvent acrylic adhesive, protected by an easy-release silicone release paper.
E. Aluminum tape with flame retardant cold weather solvent acrylic adhesive, protected by an easy-release silicone release paper.
F.Aluminum tape with transparent high performance synthetic rubber-resin adhesive.
G.Aluminum tape with flame retardant solvent acrylic adhesive.
What are the Applications of our Aluminium Foil Adhesive tape?
TYPICAL APPLICATIONS: HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications – indoors and outdoors.
