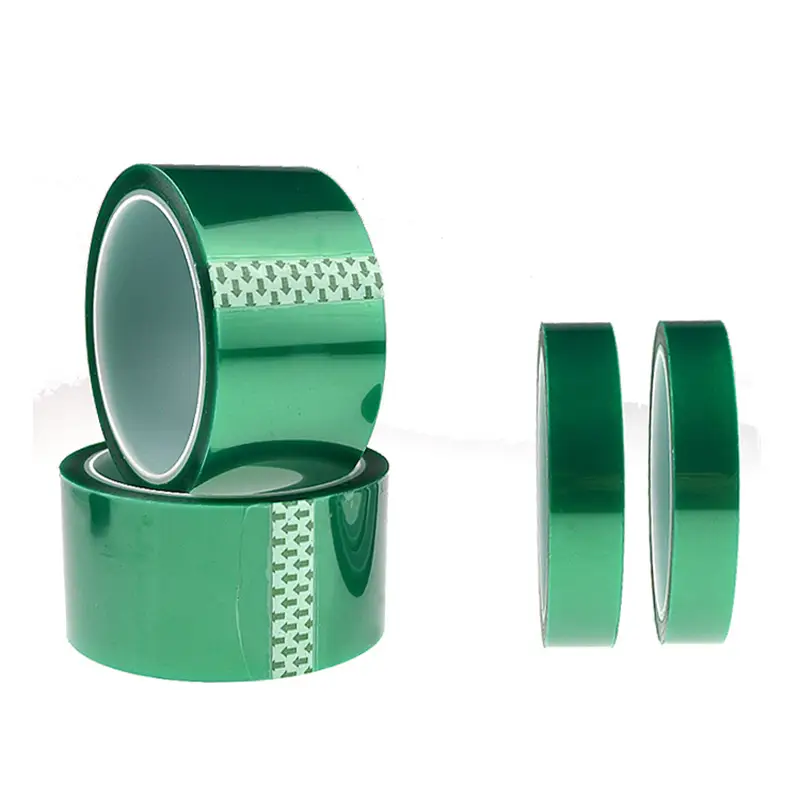

High Temperature Tape Powder Coating Dry Pcb Solder Mask Film
High Temperature Tape Powder Coating Dry Pcb Solder Mask Film
What Benefits you can have from YITAP Tape ?
-
YITAP produce Quality Tape with many equivalent code.
-
Increasing your profit margin with Quality tape but better price.
-
Increasing your company reputation and occupy bigger market share.
YITAP®polyester masking tape is a PET tape with an aggressive pressure-sensitive adhesive which adheres well to a wide variety of surfaces under a wide range of temperature conditions.
What are the features of our green polyester tape?
1.High temperature resistant, good insulation, and no residue of glue in coating process.
2.industry standard pet adhesive tape.
3.Useful in temperature up to 400°F (204°C).
4.Removes cleanly from surfaces without leaving residue.
What are the Specifications of our green polyester tape?
| Thickness (mm) |
0.06 |
0.08 |
| Carrier |
Polyester Film | Polyester Film |
| Adhesive |
Silicone | Silicone |
| Adhesion to Steel(N/25mm) |
≥6 | ≥10 |
| Tensile Strength(N/25mm) |
≥135 | ≥220 |
| Elongation(%) |
60% | 60% |
| Holding Power(Hr) |
≥48 | ≥48 |
| Temperature Resistance(℃ |
220℃ | 220℃ |
| Insulation Rank |
F | F |
| Width(mm) |
Any | Any |
| Length(M) |
33/66 | 33/66 |
Heat-resistant insulating tape is made of two different layers that give the tape its distinct properties. The top layer is a polyester film with
high quality silicone adhesive and excellent electric property.
Popular size:
Width: From 1mm to 980mm/1280mm
Length: 366M
Jumbo size: 980mm×31280mm×33m 980mm×66m/1280mm×66m
What are the Applications of our polyester tape?
1,Used in painting and powder coating industry
2,Used in connecting anti-adhesive paper
3,Used in the industries of electrics, moto, paiting to shield protect, insulate.
4,Specially used in transformer, motors, and capacitors as well as PCB manufacturing
5,Mainly used in electroplating and welding of PCB for protection and masking purposes.
Different colours/glue type/dimension pictures of our polyester tape
1. YITAP® heat-resistant insulating tape is able to provide different colours.
2. Please send your inquiry by click "send" button in bottom no matter you are expert buyer or new buyer, we will provide the best advice for different market.
