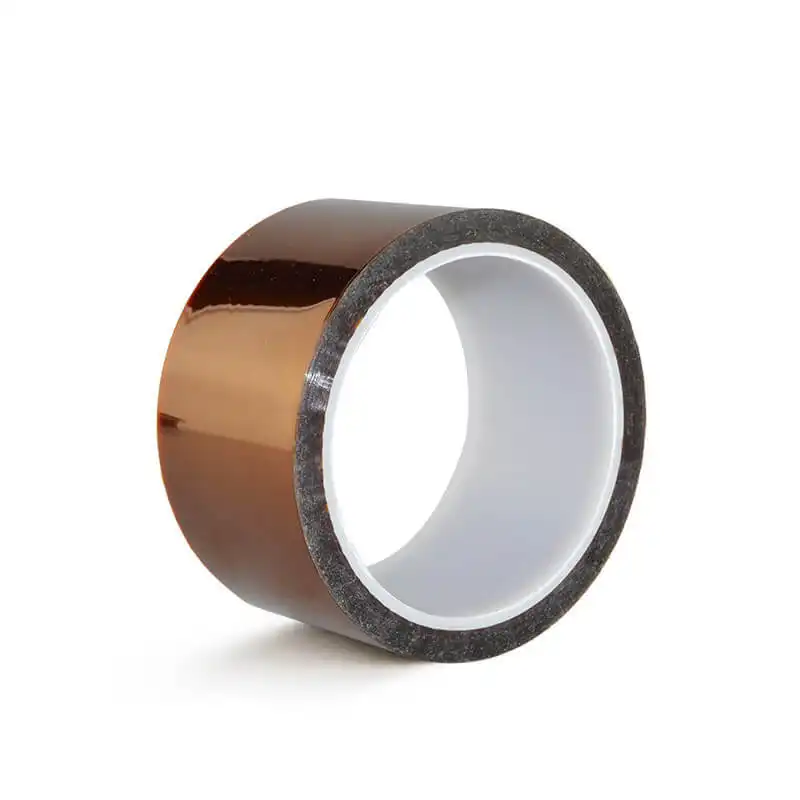

High Temperature Polyimide Film Adhesive Masking Tape
YITAP polyimide film maintain excellent physical electrical, and mechanical properties over a wide temperature range has opened new design and application areas to plastic films.Having excellent chemical resistance and highest UL-94 flammability rating V-0.
● Polyimide film as carrier, high temperature resistance, good insulation performance;
● Silicone pressure sensitive adhesive, good high temperature resistant;
● Surface protection without adhesive residue.
● Anti-static.
| Backing | Polyimide film |
| Thickness [±8] | 50 Micron |
| Density, g/cm³ | 1.42+/-0.02 |
| Tensile strength, Mpa MD/TD | 165/165 |
| Ultimate Elongation MD/TD(%) | 45%/45& |
| Dielectric Strength, KV/mm≥ | 195 |
| Dieletric Constantat, at 50H≤ | 3.2 1.5≠10 |
| Volume Resistivity, Ω.cm≥ | 17 |
| Dissipation Factorat 50H≤ | 0.0022 0.35 |
| Shrinkage at 150℃, 30min | 2.5 |
| UL-RTI Electrical ≥ | 240 |
| Flammabilit | 94v-0 |
Application
Its mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc.Without any residue after the tape is removed from the gold finger.
● It can endure high temperature up to 260 within half an hour.
● Polyimide tape feature likes: Cable insulation,electrical insulation,radiation resistance,solvement resistance,Sticking during SMT process,protection for PCB, etc.
● It is proved to be high temperature resistant and no glue resisdue
Label Customization
Private LabelTITLE
As a vertically integrated manufacturer with state-of-the-art production and converting facilities in Europe and Asia,we reliably produce the customized tape solution you need to streamline your business or compliment your portfolio.Talk to us.We are your strategic partner when it comes to manufacturing adhesive tapes.
